Home Products JSW Colour Coated Sheet
JSW Colour Coated Sh
JSW Colour Coated Sh
COD not available

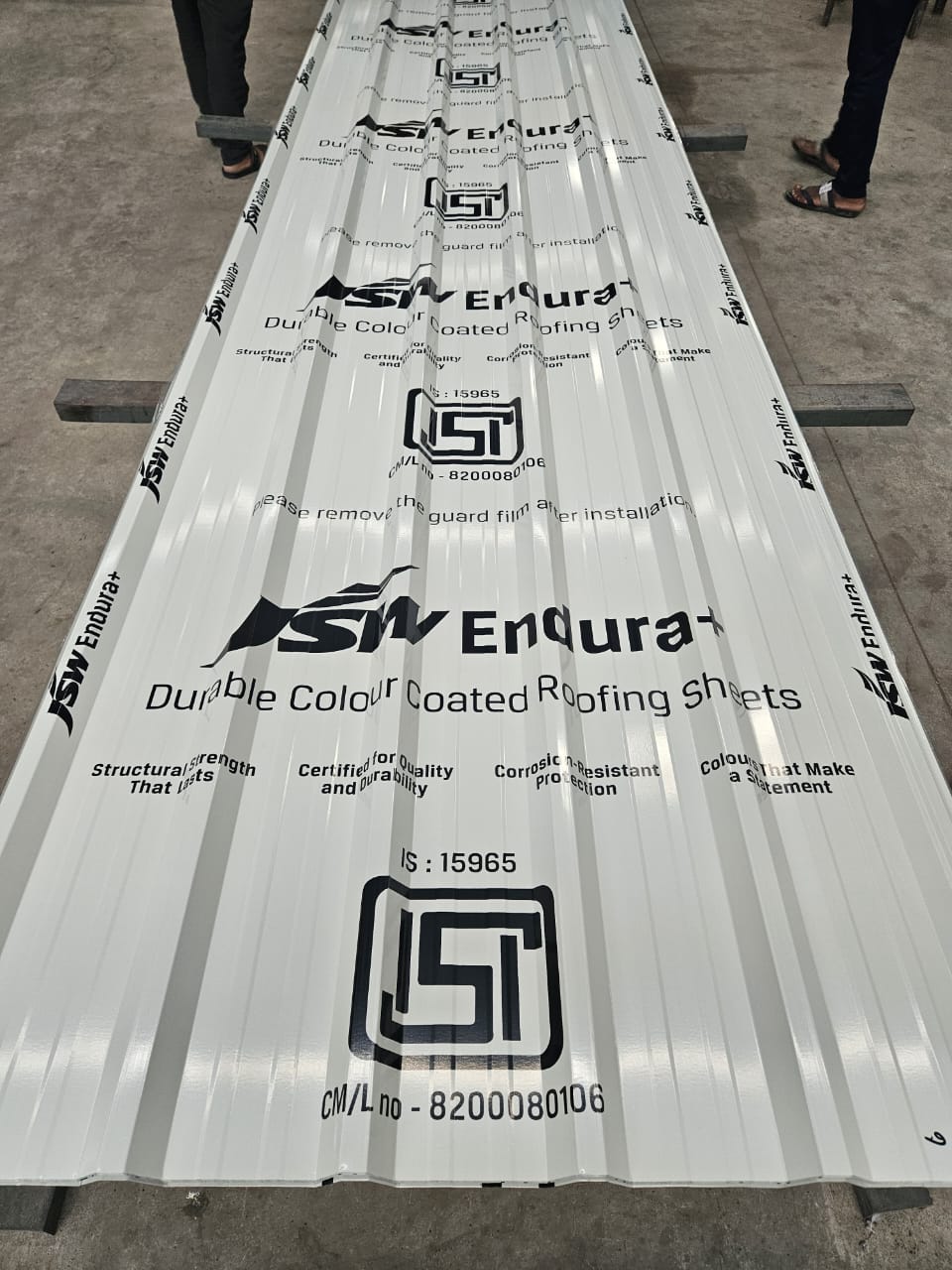

JSW Colour Coated Sheet

JSW Colour Coated Sheet

Share with
Share this on :

Description

Product details

JSW Colour Coated Sheets are premium-quality roofing and cladding materials manufactured using high-grade steel from JSW Steel. These sheets are coated with advanced paint systems to provide superior corrosion resistance, durability, and aesthetic appeal, making them ideal for industrial, commercial, and residential applications. Key Features Manufactured using high-quality JSW steel Superior color coating with long-lasting finish Excellent corrosion and weather resistance UV-resistant and fade-resistant coating High strength with lightweight structure Easy installation and low maintenance Available in multiple profiles and colors Technical Specifications Parameter Specification Base Material JSW Galvanized Iron (GI) / Galvalume Steel Coating Type Color Coated (PE / SMP / PVDF) Sheet Thickness 0.30 mm – 0.80 mm Effective Width 750 mm – 1250 mm Length Customizable (up to 12 meters) Zinc/Aluzinc Coating 80 GSM – 275 GSM Paint Coating Thickness Top: 15–25 microns, Back: 5–10 microns Finish Type Glossy / Matte / Textured Color Options Red, Blue, Green, Grey, White, Brown, Custom RAL Shades Profile Types Corrugated / Trapezoidal / Tile Profile Tensile Strength 250 – 550 MPa Yield Strength 140 – 300 MPa Corrosion Resistance Excellent (suitable for coastal & industrial areas) UV Resistance High Temperature Resistance Suitable for extreme weather conditions Weight Depends on thickness and profile Available Variants JSW PPGI Colour Coated Sheets JSW PPGL (Galvalume) Colour Coated Sheets Corrugated & Trapezoidal Roofing Sheets Tile Profile Colour Sheets Applications Industrial roofing and cladding Warehouses and logistics parks Commercial buildings and malls Residential housing projects Cold storage and prefabricated structures Agricultural sheds Advantages Long-lasting color and gloss retention High durability with minimal maintenance Excellent resistance to rust and corrosion Quick installation and easy handling Cost-effective over long-term usage Optional Accessories Self-drilling screws with EPDM washers Ridge caps and flashing Sealants and waterproofing materials Gutter and rainwater systems Why Choose Yogeshwar Profile Industries? Authorized sourcing of premium JSW Steel materials Advanced roll-forming and fabrication facilities Custom sizes, profiles, and colors available Strict quality assurance and timely delivery Competitive pricing across India

  • Filter tags

Other Products

Related Products

PUF (Polyurethane Foam) Insulated Sheets, commonly known as Puff Sheets, are high-performance sandwich panels designed for superior thermal insulation, strength, and durability. These sheets consist of a rigid PUF core sandwiched between two metal sheets, making them ideal for roofing and wall cladding in temperature-controlled environments. Key Features Excellent thermal insulation properties Lightweight with high structural strength Energy-efficient and reduces cooling costs Weatherproof and leak-resistant High load-bearing capacity Corrosion-resistant outer layers Quick and easy installation Long service life with minimal maintenance Technical Specifications Parameter Specification Top & Bottom Sheet Material Pre-Painted Galvanized Iron (PPGI) / Galvalume / Aluminium Core Material Rigid Polyurethane Foam (PUF) Panel Thickness 30 mm, 40 mm, 50 mm, 60 mm, 80 mm, 100 mm Metal Sheet Thickness 0.30 mm – 0.60 mm Effective Width 950 mm – 1050 mm Length Customizable (up to 12 meters) PUF Density 35 – 45 kg/m³ Thermal Conductivity 0.022 – 0.028 W/mK Fire Resistance B2 / B3 grade (as per standard) Compressive Strength ≥ 150 kPa Adhesion Strength Excellent bonding between layers Sound Insulation 20 – 30 dB Coating Type PE / SMP / PVDF color coating Temperature Resistance -40°C to +80°C Water Absorption < 2% Joint Type Tongue & Groove / Interlocking system Weight Approx. 8 – 14 kg/m² (depending on thickness) Available Variants PUF Roofing Sheets PUF Wall Panels PUF Sandwich Panels with different thickness options Applications Cold storage and refrigeration units Food processing industries Pharmaceutical plants and clean rooms Industrial sheds and warehouses Prefabricated buildings Commercial and residential insulation projects Advantages Reduces energy consumption significantly Maintains controlled indoor temperature Quick installation with modular design Durable and resistant to harsh weather Hygienic and suitable for clean environments Optional Accessories Ridge caps and flashing Fasteners with EPDM washers Sealants and insulation tapes Corner panels and trims Why Choose Yogeshwar Profile Industries? Premium-grade PUF core and metal sheets Advanced manufacturing technology Custom sizes and specifications available Strict quality control standards Reliable delivery and competitive pricing
View Details
Puff Sheet
Colour Tile Profile Sheets are aesthetically designed roofing sheets that combine the classic appearance of traditional roof tiles with the strength and durability of modern metal sheets. These sheets are widely used for residential, commercial, and industrial roofing where visual appeal and long-lasting performance are required. Key Features Elegant tile-like design with modern finish High strength and durability उत्कृष्ट weather and corrosion resistance UV-resistant color coating Lightweight and easy to install Leak-proof overlapping system Low maintenance and long life Available in multiple attractive colors Technical Specifications Parameter Specification Base Material Pre-Painted Galvanized Iron (PPGI) / Galvalume Steel Coating Type Color Coated (PE / SMP / PVDF) Sheet Thickness 0.30 mm – 0.60 mm Effective Width 1000 mm – 1100 mm Length Customizable (up to 12 meters) Profile Type Tile Profile (Step Tile / Spanish Tile Design) Coating Thickness 15–25 microns (top), 5–10 microns (back) Zinc/Aluzinc Coating 80 GSM – 150 GSM Color Options Brick Red, Terracotta, Blue, Green, Grey, Custom RAL Colors Surface Finish Glossy / Matte / Textured Tensile Strength 250 – 550 MPa Corrosion Resistance High (depends on coating quality) Water Tightness Leak-proof with proper overlap Temperature Resistance Suitable for all weather conditions Weight Approx. 3 – 6 kg/m² Available Variants Step Tile Profile Sheets Spanish Tile Profile Sheets Stone Coated Tile Sheets (Optional finish) Applications Residential houses and villas Farmhouses and resorts Commercial buildings Industrial sheds Parking sheds and garages Roofing renovation projects Advantages Attractive appearance similar to traditional tiles Faster installation compared to clay tiles Durable and long-lasting coating Cost-effective roofing solution Resistant to cracking, warping, and corrosion Suitable for all climatic conditions Optional Accessories Ridge caps and hip covers Valley gutters and flashing Self-drilling screws with EPDM washers Sealants and waterproofing accessories Why Choose Yogeshwar Profile Industries? Premium quality color-coated sheets Advanced roll-forming technology Custom design and size options Strict quality control standards Reliable supply across India
View Details
Colour Tile Profile Sheet
UPVC Tile Sheets are high-performance roofing solutions designed to replicate the aesthetic appeal of traditional roof tiles while offering superior durability, weather resistance, and thermal insulation. Manufactured using Unplasticized Polyvinyl Chloride (UPVC), these sheets are ideal for modern roofing applications where long life, low maintenance, and visual appeal are essential. Key Features Attractive tile-like appearance Excellent heat and sound insulation 100% corrosion and rust-proof UV-resistant and weatherproof Lightweight and easy to install Fire-retardant and chemical-resistant Leak-proof interlocking design Long service life with minimal maintenance Technical Specifications Parameter Specification Material UPVC (Unplasticized Polyvinyl Chloride) Thickness 2.0 mm – 3.0 mm Effective Width 1000 mm – 1050 mm Length Customizable (up to 11–12 meters) Profile Type Tile Profile (Spanish / Roman style) Color Options Brick Red, Terracotta, Grey, Blue, Custom Colors Surface Finish Glossy / Matte / Textured UV Protection Co-extruded UV-resistant layer Thermal Insulation High (reduces heat transmission) Sound Insulation 20–30 dB noise reduction Fire Resistance Self-extinguishing (as per standards) Water Absorption < 0.5% Chemical Resistance Resistant to acids, alkalis & salts Temperature Resistance -10°C to +70°C Wind Resistance Suitable for high wind zones (with proper fixing) Weight Approx. 3.5 – 5.5 kg/m² Design Variants Spanish Tile UPVC Sheets Roman Tile UPVC Sheets Wave Tile Profile Sheets Applications Residential roofing (bungalows, villas) Farmhouses and resorts Industrial sheds Parking sheds and garages Pergolas and gazebos Commercial buildings Advantages Combines traditional aesthetics with modern performance Reduces indoor temperature significantly No corrosion, unlike metal sheets Easy handling and quick installation Long-lasting color stability Environment-friendly and recyclable Optional Accessories Matching ridge tiles and caps Fasteners with waterproof washers Flashing and sealing strips Gutter systems Why Choose Yogeshwar Profile Industries? Premium quality raw materials Advanced manufacturing technology Custom size and color options Reliable and timely delivery Competitive pricing
View Details
UPVC Tile Sheet
