Description
Product details

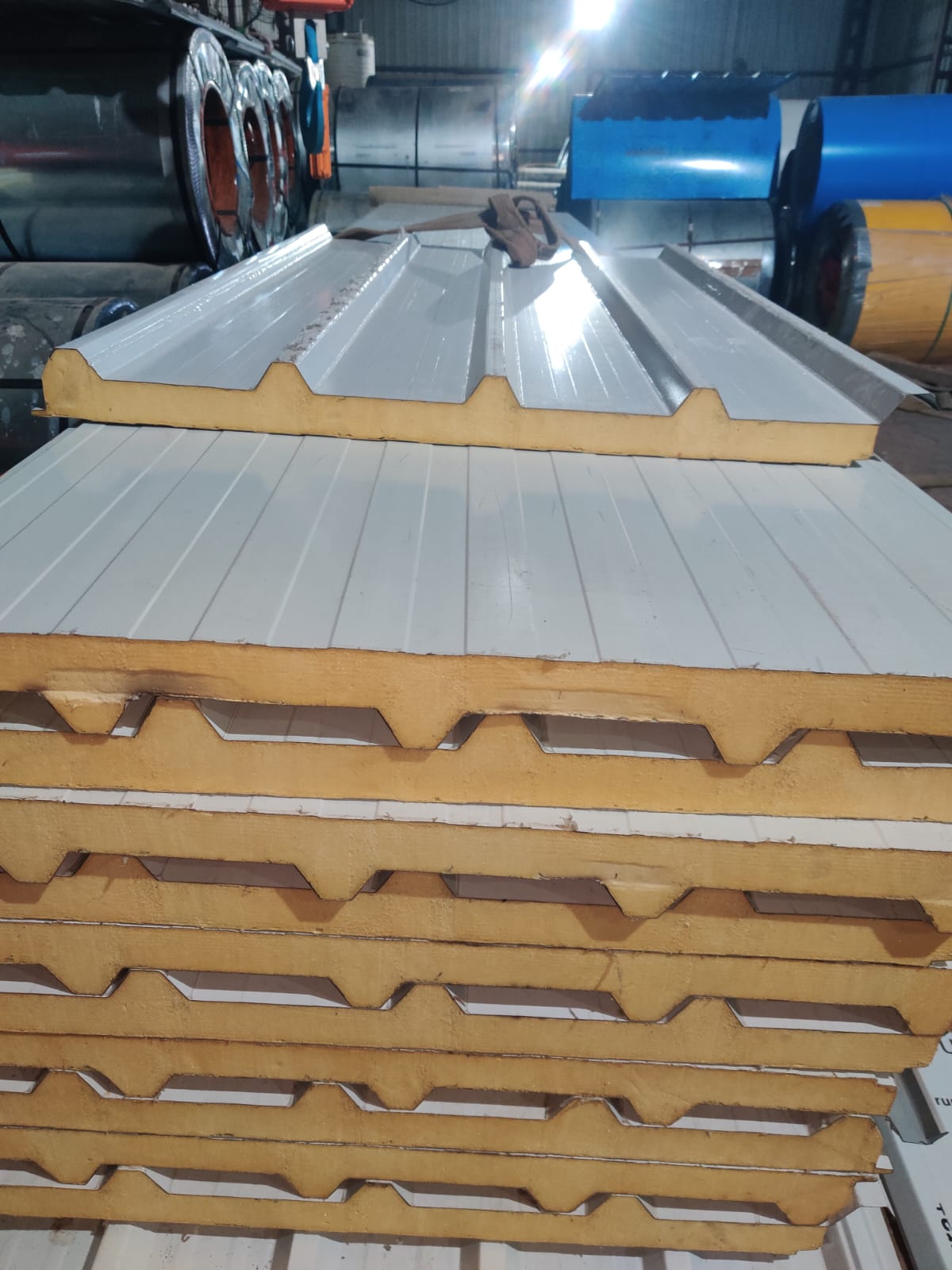

PUF (Polyurethane Foam) Insulated Sheets, commonly known as Puff Sheets, are high-performance sandwich panels designed for superior thermal insulation, strength, and durability. These sheets consist of a rigid PUF core sandwiched between two metal sheets, making them ideal for roofing and wall cladding in temperature-controlled environments. Key Features Excellent thermal insulation properties Lightweight with high structural strength Energy-efficient and reduces cooling costs Weatherproof and leak-resistant High load-bearing capacity Corrosion-resistant outer layers Quick and easy installation Long service life with minimal maintenance Technical Specifications Parameter Specification Top & Bottom Sheet Material Pre-Painted Galvanized Iron (PPGI) / Galvalume / Aluminium Core Material Rigid Polyurethane Foam (PUF) Panel Thickness 30 mm, 40 mm, 50 mm, 60 mm, 80 mm, 100 mm Metal Sheet Thickness 0.30 mm – 0.60 mm Effective Width 950 mm – 1050 mm Length Customizable (up to 12 meters) PUF Density 35 – 45 kg/m³ Thermal Conductivity 0.022 – 0.028 W/mK Fire Resistance B2 / B3 grade (as per standard) Compressive Strength ≥ 150 kPa Adhesion Strength Excellent bonding between layers Sound Insulation 20 – 30 dB Coating Type PE / SMP / PVDF color coating Temperature Resistance -40°C to +80°C Water Absorption < 2% Joint Type Tongue & Groove / Interlocking system Weight Approx. 8 – 14 kg/m² (depending on thickness) Available Variants PUF Roofing Sheets PUF Wall Panels PUF Sandwich Panels with different thickness options Applications Cold storage and refrigeration units Food processing industries Pharmaceutical plants and clean rooms Industrial sheds and warehouses Prefabricated buildings Commercial and residential insulation projects Advantages Reduces energy consumption significantly Maintains controlled indoor temperature Quick installation with modular design Durable and resistant to harsh weather Hygienic and suitable for clean environments Optional Accessories Ridge caps and flashing Fasteners with EPDM washers Sealants and insulation tapes Corner panels and trims Why Choose Yogeshwar Profile Industries? Premium-grade PUF core and metal sheets Advanced manufacturing technology Custom sizes and specifications available Strict quality control standards Reliable delivery and competitive pricing
