Description
Product details

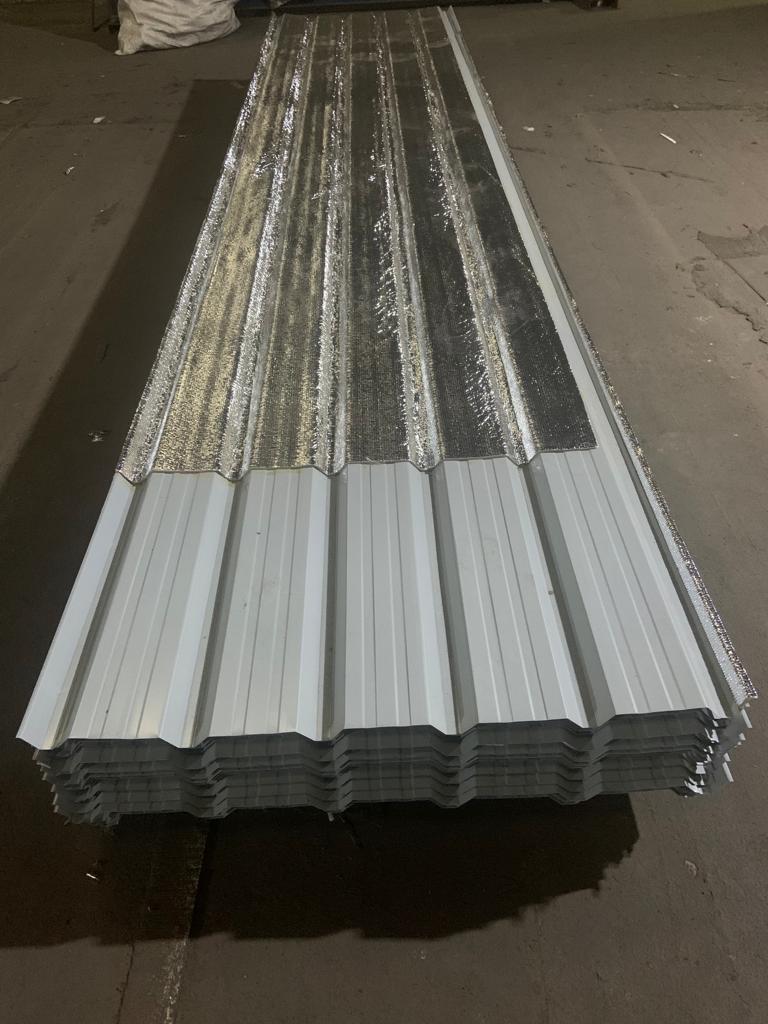

The Insulated Sheet is a high-performance roofing and cladding solution designed to provide superior thermal insulation, sound reduction, and structural strength. Manufactured using premium-grade materials, these sheets are ideal for industrial, commercial, and residential applications where temperature control and durability are essential. Key Features उत्कृष्ट thermal insulation performance Lightweight yet high structural strength Weatherproof and leak-resistant design Excellent sound insulation properties Fire-retardant core options available Corrosion-resistant outer layers Easy and fast installation Long service life with minimal maintenance Technical Specifications Parameter Specification Top & Bottom Sheet Material Pre-painted Galvanized Iron (PPGI) / Galvalume / Aluminium Core Material PUF (Polyurethane Foam) / EPS (Expanded Polystyrene) / Rockwool Thickness (Overall) 30 mm, 40 mm, 50 mm, 60 mm, 80 mm, 100 mm Sheet Thickness (Metal) 0.30 mm – 0.60 mm Effective Width 950 mm – 1050 mm Length Customizable (up to 12 meters) Density (Core) PUF: 35–45 kg/m³, EPS: 12–20 kg/m³, Rockwool: 80–120 kg/m³ Thermal Conductivity PUF: 0.022–0.028 W/mK Fire Resistance B2/B3 grade (PUF), Non-combustible (Rockwool) Sound Insulation 20–35 dB (depending on core material) Coating Color coated / PVDF / SMP Color Options As per RAL standards Joint Type Overlap / Interlocking system Water Resistance Leak-proof with proper installation Temperature Resistance -40°C to +80°C Load Bearing Capacity High (depends on thickness & support spacing) Types Available PUF Insulated Roofing Sheets EPS Sandwich Panels Rockwool Insulated Panels Wall Cladding Insulated Panels Applications Industrial sheds and factories Warehouses and logistics parks Cold storage and food processing units Commercial buildings and malls Prefabricated structures Clean rooms and pharmaceutical units Residential roofing solutions Advantages Energy-efficient (reduces cooling costs) Quick installation with modular design Environment-friendly materials Excellent durability in harsh climates Reduces noise pollution Optional Accessories Ridge caps and flashing Fasteners with EPDM washers Sealants and insulation tapes Gutter systems
